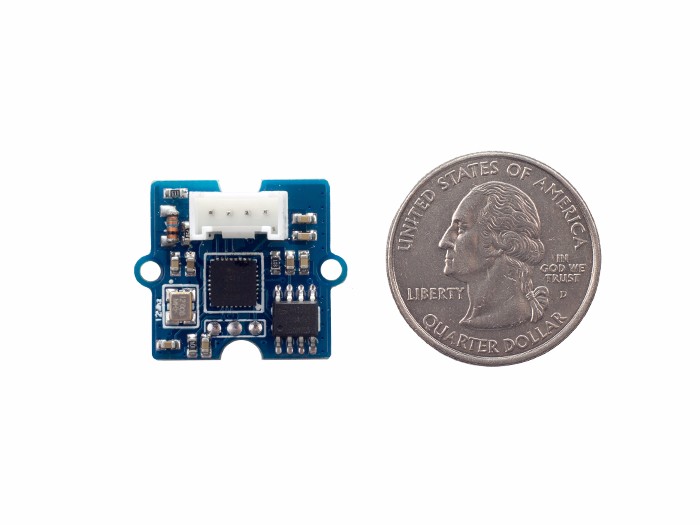

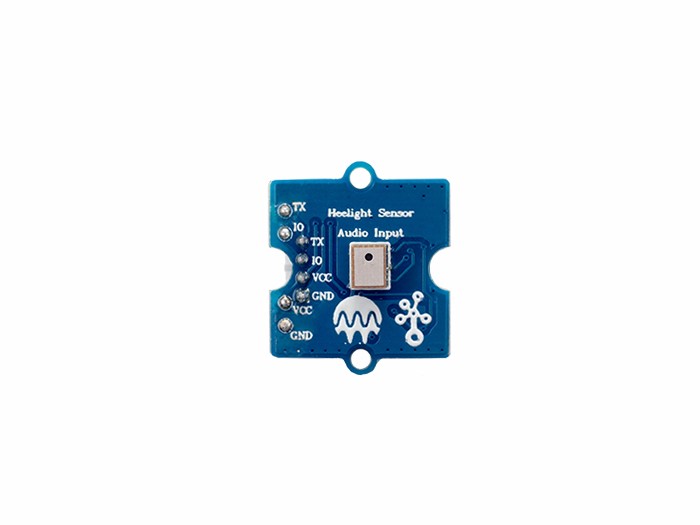

Grove - Heelight Sensor 智慧語音感測器
Grove - Heelight Sensor是一款智能語音傳感器，可識別多達  500個數字語音命令（點擊下載語音文件）。它最初是在 Heelight 上使用的- 一種可以被數字聲波控制的智能彩色燈泡。使用直角傳感器，無需使用藍牙，wifi或Zigbee進行非接觸式光線控制。現在我們將這個傳感器引入到小而整齊的Grove模組中，使您能夠在基於Arduino的項目中實現智能控制。

注意：請注意，此傳感器只能識別數字語音。如果您需要人聲識別模組，請考慮 Respeaker   或   Grove - 語音識別器。

Grove – Heelight Sensor is a smart voice sensor that can recognize up to 500 digital voice commands(Click to download the voice file). It was originally used on the Heelight – a smart colorful bulb that can be controlled by digital sound waves. With the heelight sensor, there is no need for bluetooth, wifi, or zigbee to do non-contact light control. Now we introduce this sensor into the small and neat Grove modules, allow you to realize smart control in your Arduino – based projects.
Note: Please note that this sensor can only recognize digital voice. If you need human voice recognition module, please consider the Respeaker  or  Grove - Speech Recognizer.
Features

Digital Voice Recognition
Support over 500 digital voice commands
Compatible with the Grove system

Alternative ChoiceIf you want to use Heelight Sensor on a bread board or integrate it to your own product/PCBA, there's a better choice for you---Heelight Core.
Technical Details



Dimensions
20mm x 20mm x 10mm


Weight
G.W 7.8g    N.W 6.8g


Battery
Exclude


Operating Voltage
DC 3.3V~5V


Operating Current
15mA


Identification Range
0.1~10m


Angle Range
360°


Baud Rate
115200


Serial Port Output
TTL logic level

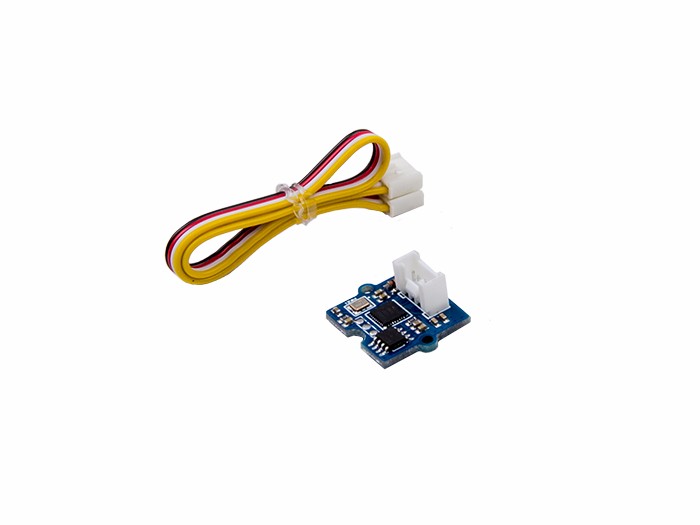

Part List



Grove - Heelight Sensor
1

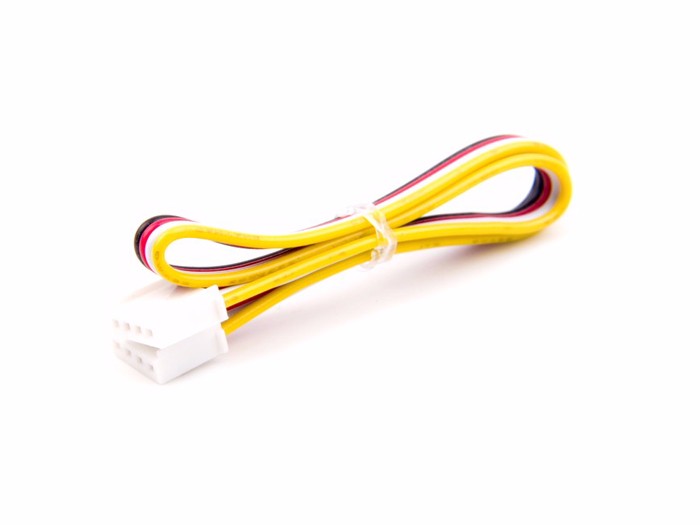

Grove cable
1
